Description
The hose reel irrigation machine realizes automatic hose rewinding driven by water power without manual retraction. It boasts wide spraying coverage, gentle water output and outstanding water-saving effect, as well as convenient relocation. It is widely used in large-scale irrigation for field crops and cash crops to reduce costs and improve efficiency.

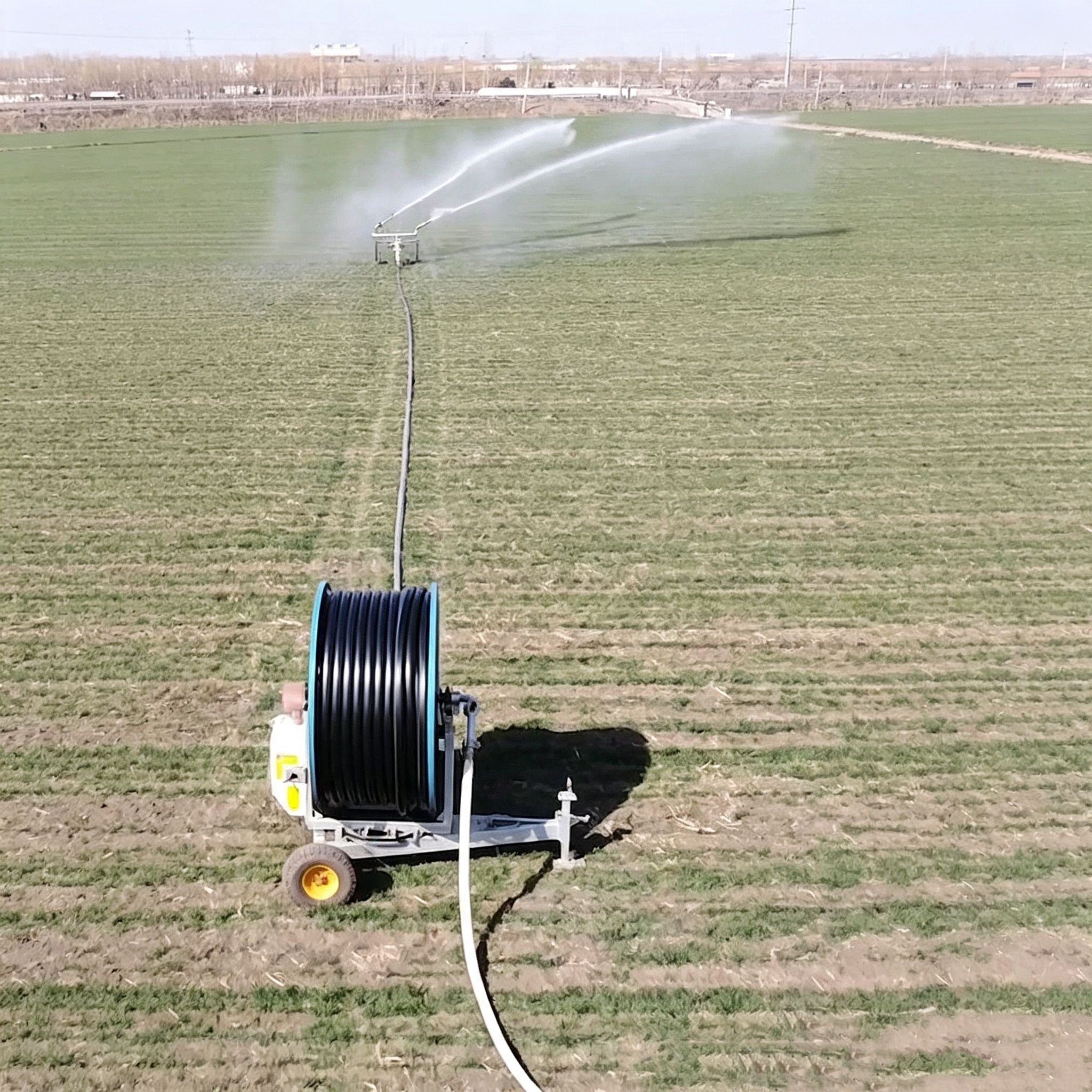

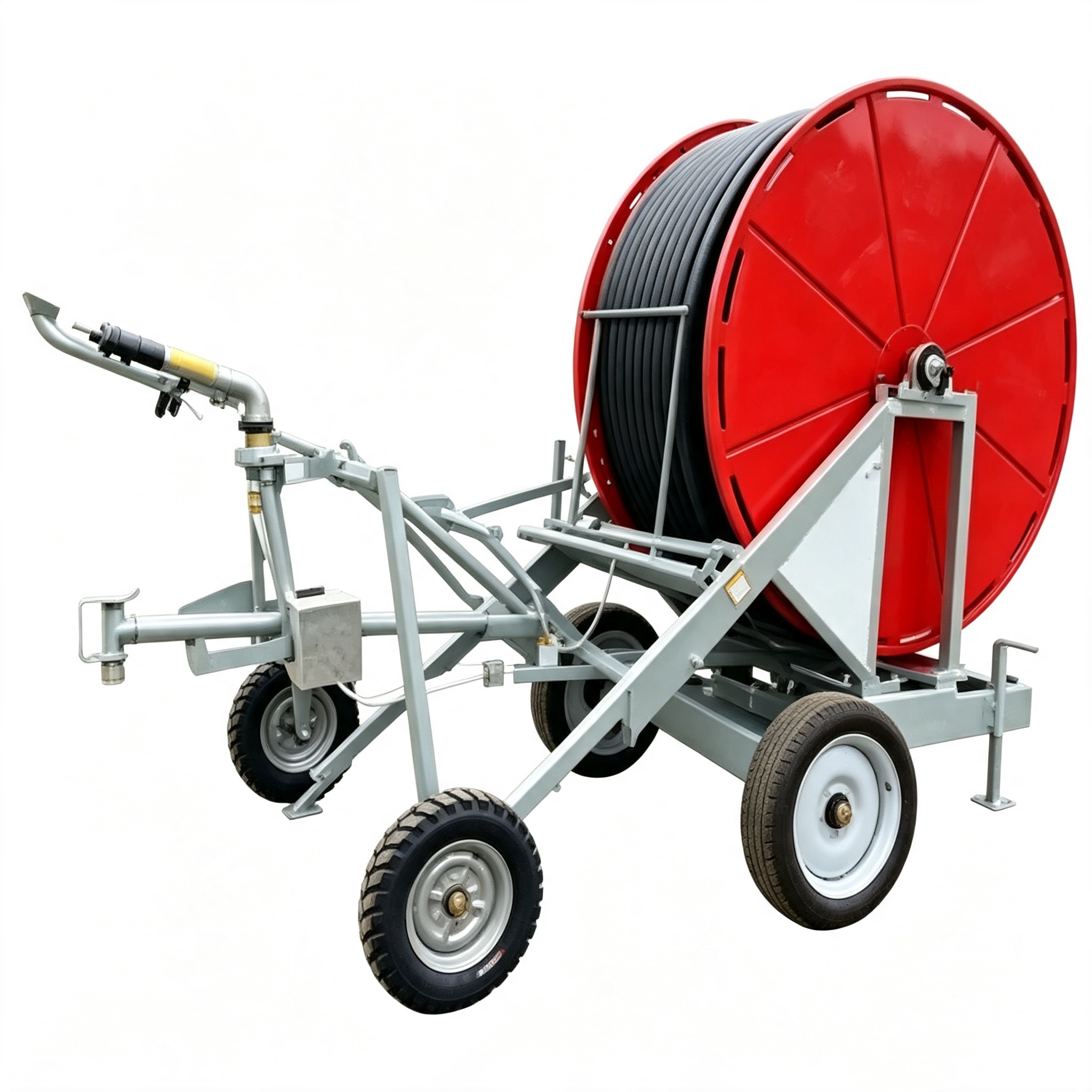

Sprinkler Gun Version
Features long spraying distance and high irrigation uniformity. Equipped with sprinkler guns, it simply completes irrigation for tall and short stalk crops.
Pipe diameter: 75 mm / 90 mm
Hose length: 300 m / 400 m / 500 m
Spray diameter: 50–70 m
Rotation mode: 360° full-circle rotation
Water flow rate: 30–70 m³/h
Irrigation efficiency: Approximately 2–4 mu per hour when fitted with Model 50 sprinkler gun

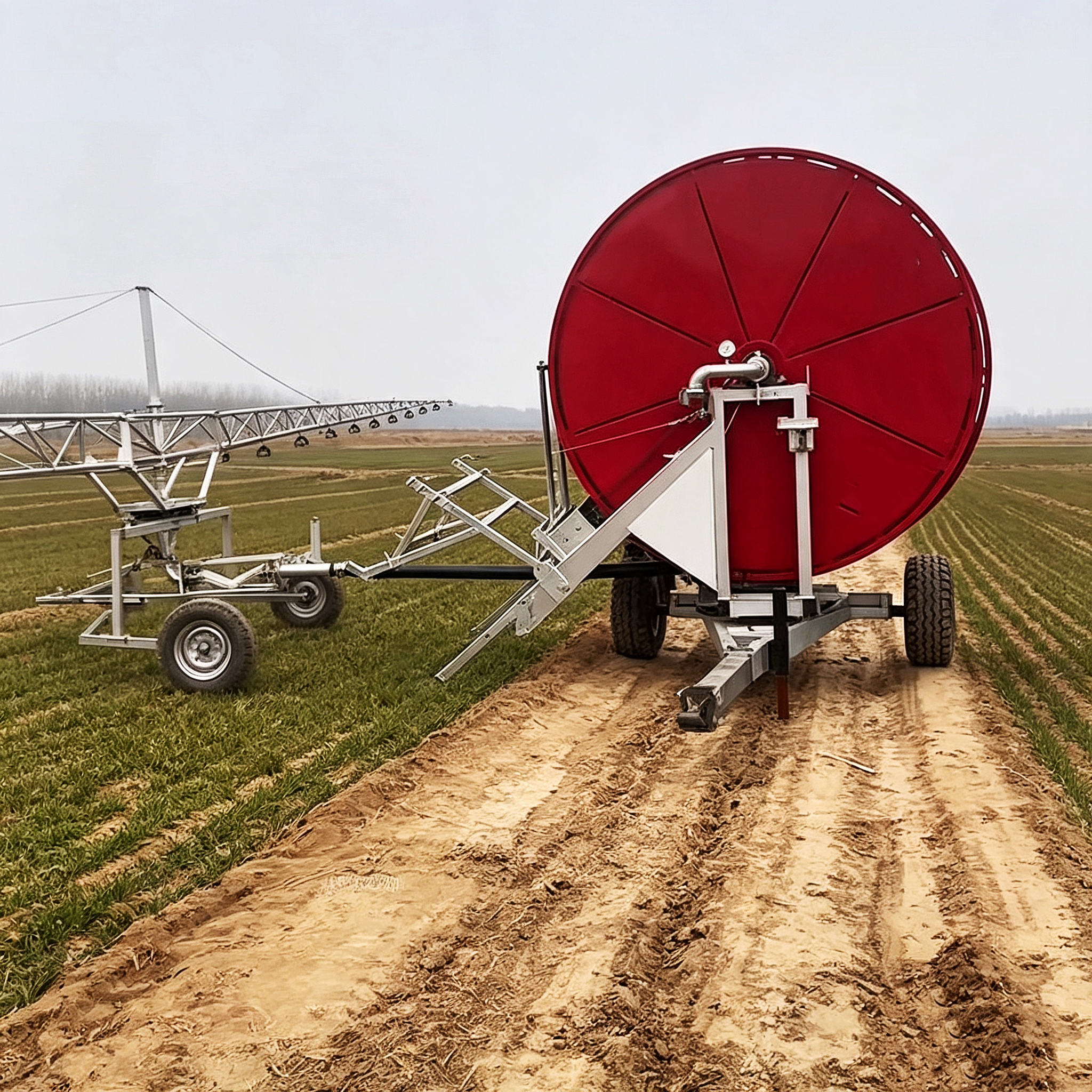

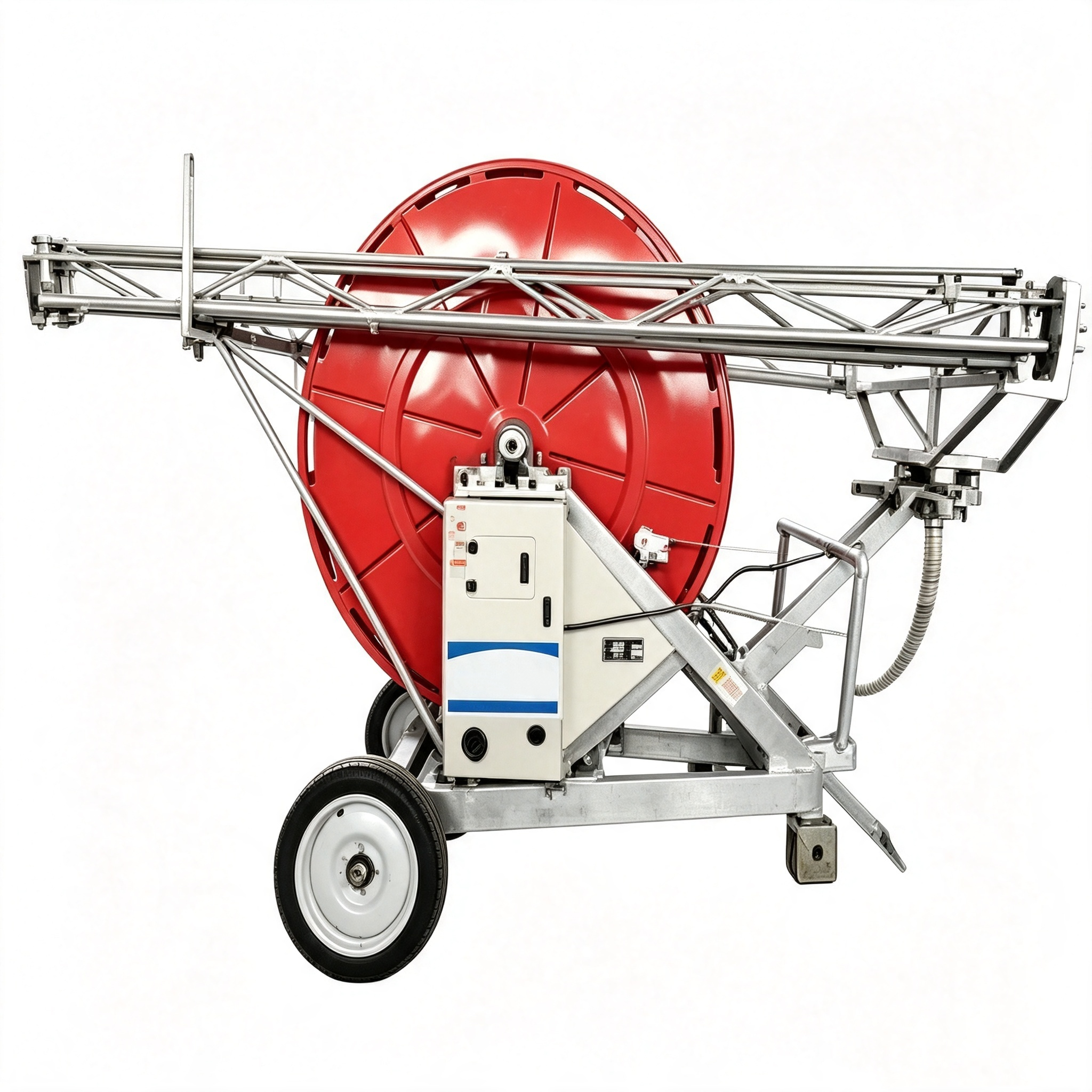

Truss Version
Performs low-pressure irrigation for delicate crops without damaging soil and plants, with a controlled irrigation width up to 34 meters.
Made of 304 stainless steel, truss length 31 m with 25 sprinklers installed. It has strong wind resistance and uniform water distribution. The machine supports dual-purpose use by switching to sprinkler guns, suitable for seasons and regions with strong winds.
