Folded dimensions: 4400 × 1900 × 2300 mm / 4820 × 1930 × 2480 mm
Unfolded dimensions: 5300 × 21000 × 2300 mm / 5790 × 21200 × 2480 mm
Hose diameter: 63 mm / 75 mm
Total hose length: 150 m / 200 m
Hose retraction speed: 10–50 m/min
Rated inlet pressure: 0.4 MPa

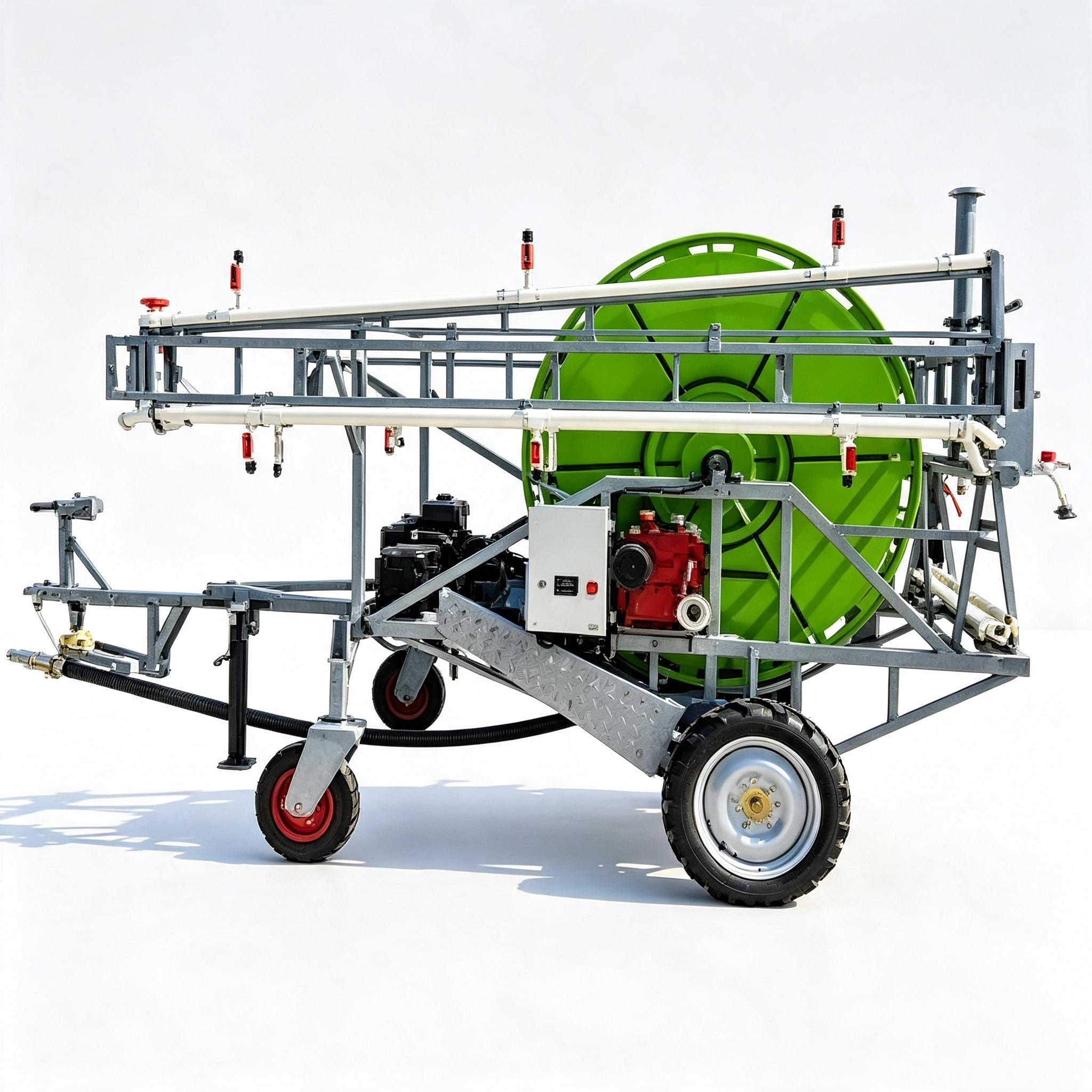

Truss sprinkling width: 21 m, equipped with 21 individually controllable emitters, and long-range sprinkler guns can be additionally installed.
Spray diameter: 30–50 m
Daily irrigation capacity: 15–35 mu. The whole unit travels automatically by hydraulic power.

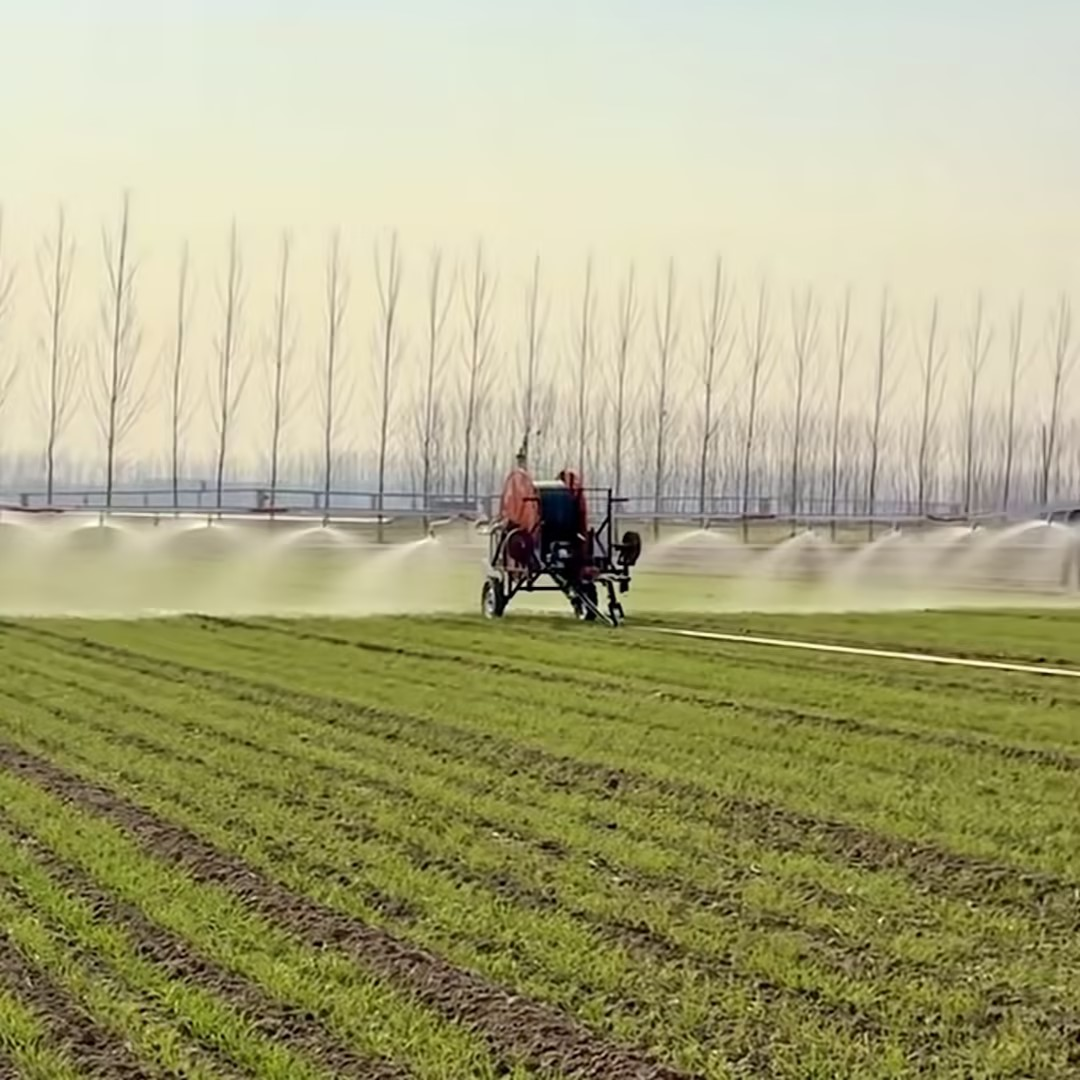

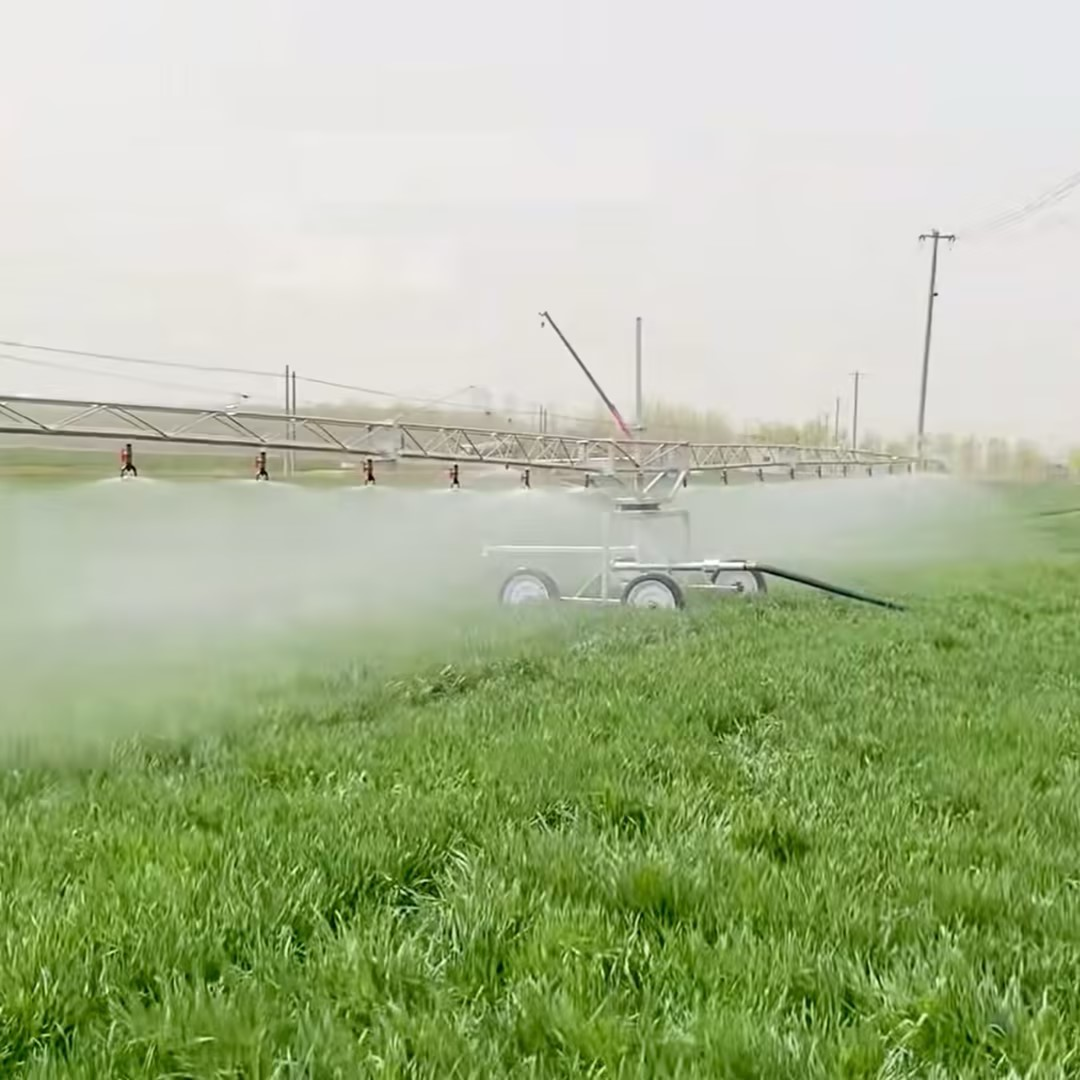

Dual working modes of truss sprinkler system and long-distance sprinkler gun ensure uniform irrigation with no blind spots. It hydraulically drives automatic hose rewinding and travelling, requiring no tractor traction throughout operation, which greatly cuts labor costs.
